Technical Data
| Type | Power?(KW) | Capacity(kg/h) | External?Dimension(mm) | Dicing?Size(mm) | Weight(kg) |
| DRD450 | 11.75 | 1500-3000 | 1775x1030x1380 | ?3-21 | 600 |
1. Cutting into slices with size of 2-18mm
2. Cutting into strips with size of 3-15mm, strips with length of 3-150mm
3. Cutting into cubes with size of 3-21mm.
4. The machine is designed with frequency converter; it can alter frequency of 0-50Hz according
to different products and temperature.
Equipment Parts
Motor: WAMF
Oil Seal: EK
Low Voltage Electrical Circuit: Circuit Breaker,AC Contactor, Motor Starter: ABB
Intermediate Relay: REIGN
Switch Power: IDEC
Proximity Switch: P+F
Button Pilot Light: TAYEE
Ⅲ． Application
Frozen meat/ Cooked meat products with hardness
Frozen Fat: -15℃
Frozen Lean Beef: -6℃
Frozen Lean Pork: -8℃
Diced frozen meat products are easy for the packages and distribution.
Comparison
| Brand | Temperature (℃) |
Capacity(t/h) | Cube?rate （8mm） |
Cutting size(mm) |
Spare?part and?machine ratio |
| Urschel | -16℃-0 | ?2-4 | 87% | 3.2-76.2 | 1:8 |
| Fam | -16℃-0 | ?2-5 | 87% | 3.17~76 | 1:7 |
| CHENGYE | -16℃-0 | ?1.5-3 | 85% | 3~21 | 1:1.7 |
| Other?China?Brand | 3℃-3 | ?0.5-1.5 | 70% | ?5-15 | 1:3 |

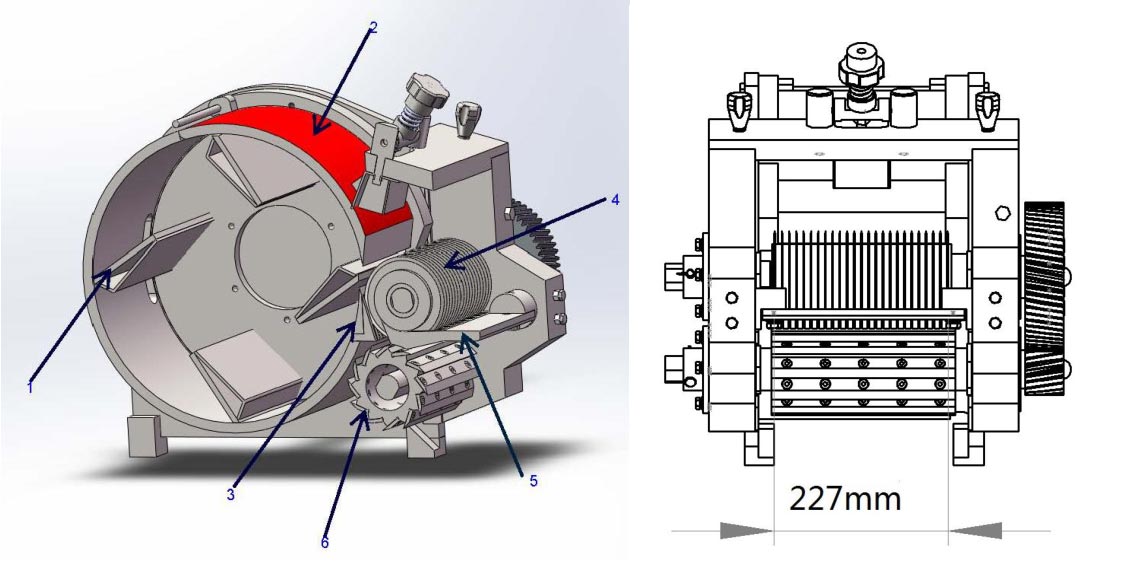

Working Theory
1. Feeder
2. Adjusting plate thickness
3. Internal Cutter
4. Round Blade
5. Stop feeder
6. Plane Blade
Cutting Effect
Detail Show
Outer sleeve

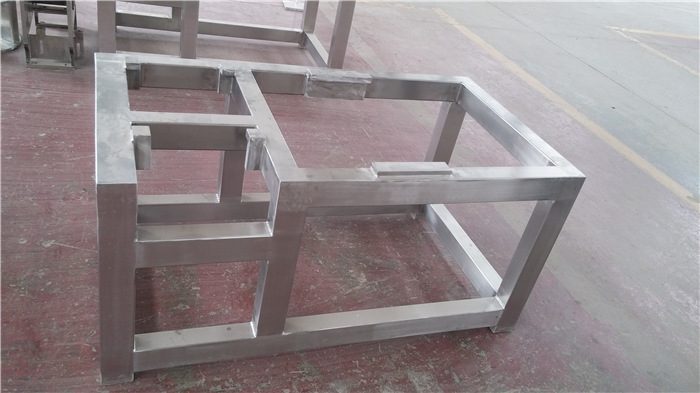

Frame

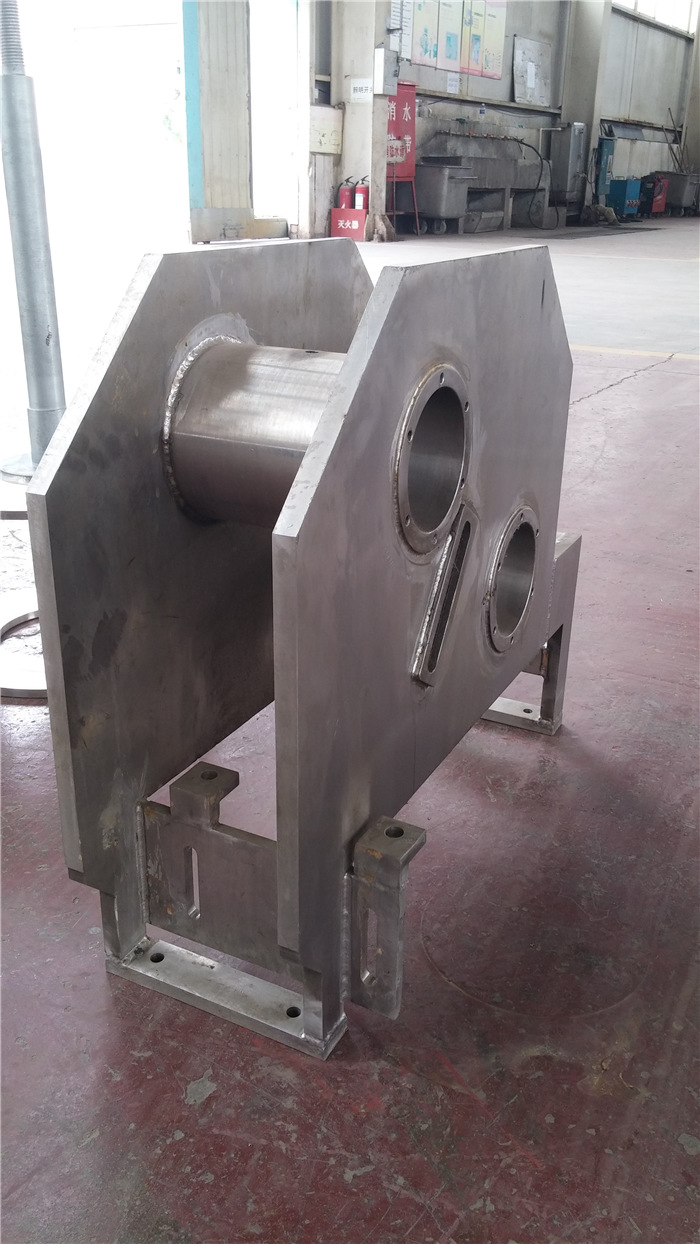

Transmission Bearing Support

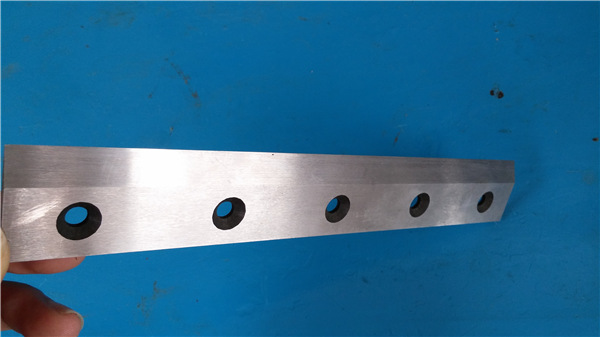

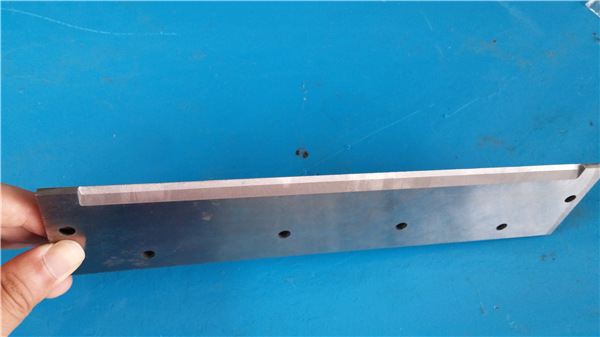

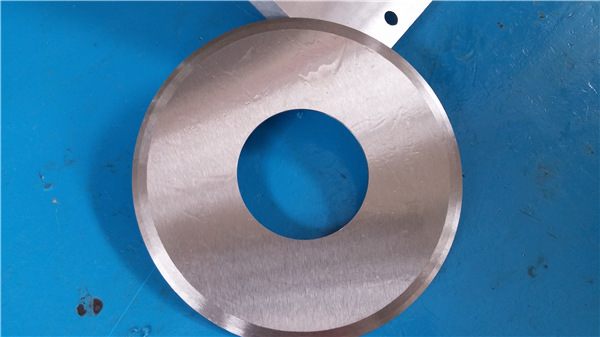

Knife parts
